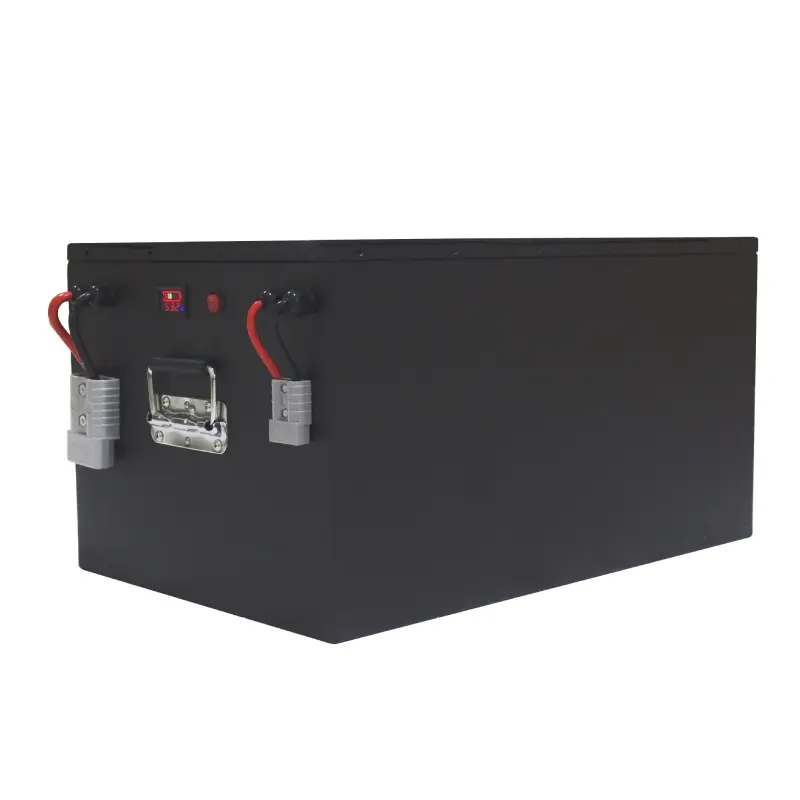

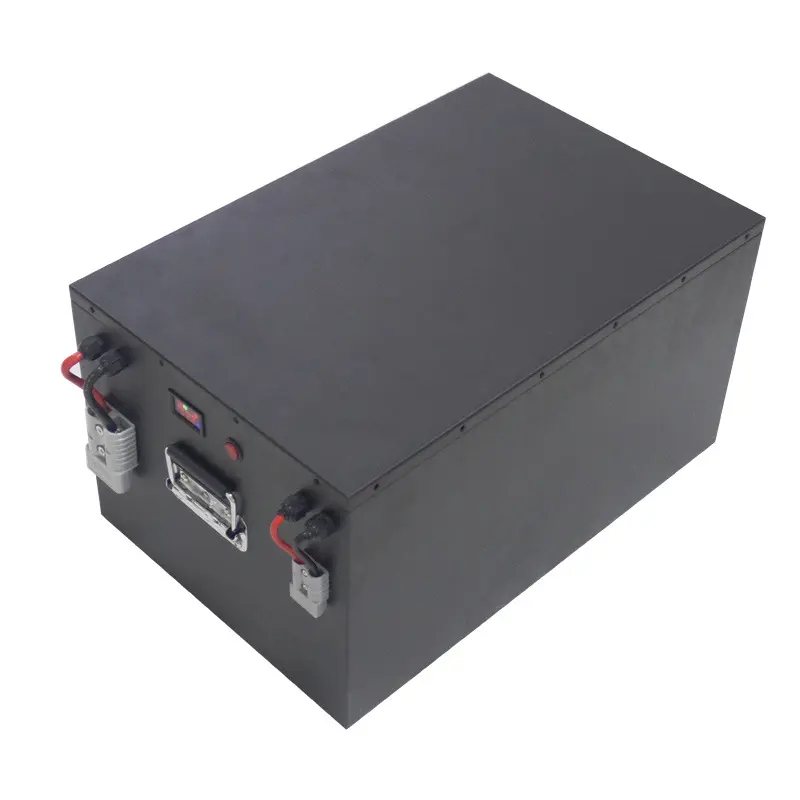

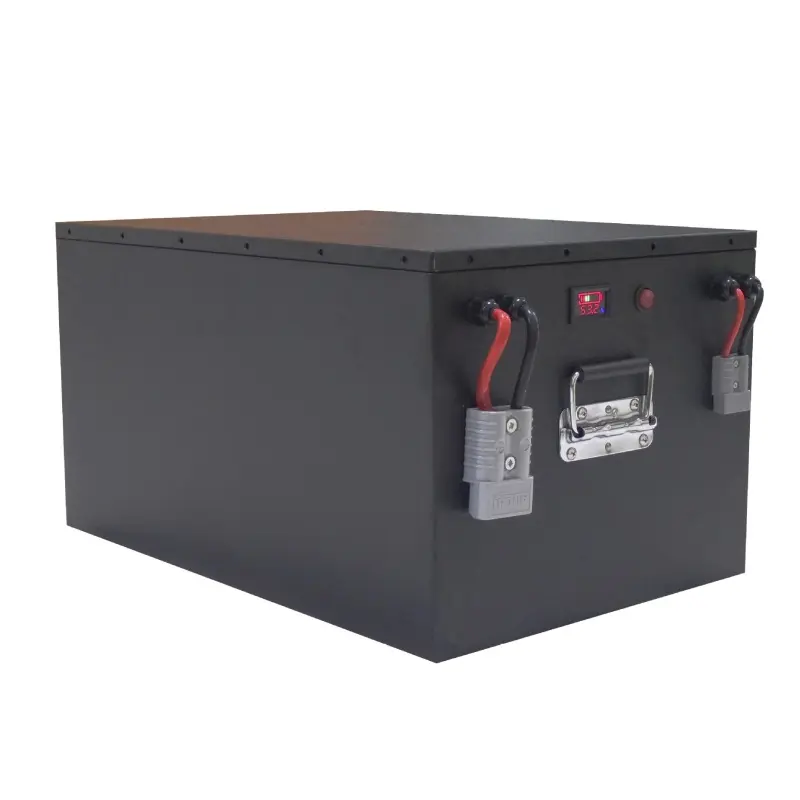

Ebike मोटरसायकल RV गोल्फ कार्टसाठी Lifepo4 लिथियम आयर्न फॉस्फेट बॅटरी 72V 50Ah

2023-06-01 02:15

तपशील

नाममात्र व्होल्टेज	72 व्ही
नाममात्र क्षमता	50 एएच
अंतर्गत प्रतिकार	≤220mΩ
सायकल लाइफ	2000 times at 85% dod 5000 times at 65% dod 8000 times at 40% dod
End of charge Voltage	14.6 व्ही
End of charge Current	100 मीए
Max.Continuous charge current	50 ए
शुल्क पद्धत	0.2C (0.5A) CC/CV
End of discharge Voltage	9.2 व्ही
Max. Pluse Discharge Current	50A/10S
Charge Temp	0 ~ 45 ℃
Discharge Temp	-10~55℃
Storage Temp	-10 ~ 45 ℃
Dimension(D×W×H)	332*170*220mm
वजन	≤20Kg
स्वयंचलित बॅटरी संरक्षण प्रणाली मध्ये तयार	होय

Charge plugs and Discharge connectors optional

1.Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without request

2.Discharge Connector: There are 12 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.

वैशिष्ट्ये

1.Lighter weight, smaller size

2.High temperature performance

3.Extremely safe, no explosion, no fire under collision

4.सर्व ओव्हर-डिस्चार्ज प्रतिकार आणि चार्ज धारणा

5.Strong charging acceptance and quick-charging capability

6.Maintenance-free and no acid or water for maintenance in usage

7.Large capability and long life for all high power output applications

8.Environmentally friendly non-toxic, non-contaminating, no rare metal.

9.Low self-discharge and good discharge performance at low temperature

10.Excellent large current discharge performance especially in startup and climbing

OEM

We also can customize the battery 12v/24v/36v/48v/72v 100h,120ah,200ah,300ah,400ah,800ah with metal box. The size and shape are flexible according to your given size. And if necessary, we can offer a remote LCD display to monitor the battery status.
To welcome the world cooperation we accept OEM with your logo design.



 अर्ज

अनुप्रयोग

* Electric Vehicles for Commercial and Commuting * Electric Scooter * Golf Cart/ troller * Electric Mobility * Electric Motorcycle * Electric Bicycle * Electric Wheelchair * Electric Power Mower * RV (Recreational Vehicle) * AGV (Automatic Guided Vehicle) /AGV cars/ AGV robots/ Self-guided



आमची फॅक्टरी

सामान्य प्रश्न

1,Q: What's the main product in AIN?
A: Rechargeable battery. NiMH, Li-ion, Lipo battery and power battery pack.
२, प्रश्नः जास्त शुल्क म्हणजे काय?
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode.
Observe changes in battery appearance.
3, प्रश्नः ओव्हर डिस्चार्ज म्हणजे काय?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in
battery appearance.
Q. प्रश्नः मी नमुना ऑर्डर घेऊ शकतो?
एक: होय, आम्ही चाचणी आणि गुणवत्ता तपासण्यासाठी नमुना ऑर्डर स्वीकारतो. बॅटरी आवश्यकतेनुसार बनविल्या जाऊ शकतात.
Q. प्रश्नः आपल्याकडे एमओक्यू मर्यादा आहे?
उ: होय, आमच्याकडे मोठ्या प्रमाणात उत्पादनासाठी एमओक्यू मर्यादा आहे, परंतु ती बॅटरीच्या मॉडेलवर अवलंबून असते. कृपया तपशीलांसाठी आमच्याशी संपर्क साधा.
Q. प्रश्नः आघाडीच्या काळाविषयी काय?
उ: नमुने घेण्यास 5-7 व्यवसाय दिवस लागतील. मोठ्या प्रमाणात उत्पादन 25-30 दिवस घेईल. हे प्रमाण अवलंबून असते.
Q. प्रश्नः शिपिंग आणि वितरण वेळेबद्दल काय?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. प्रश्नः विक्रीनंतरच्या सेवेचे काय?
A: We will offer you 2 years guarantee. If there are any problems, please inform us, we will offer you positive solutions.
