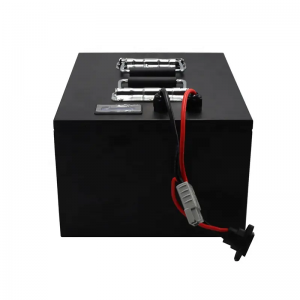

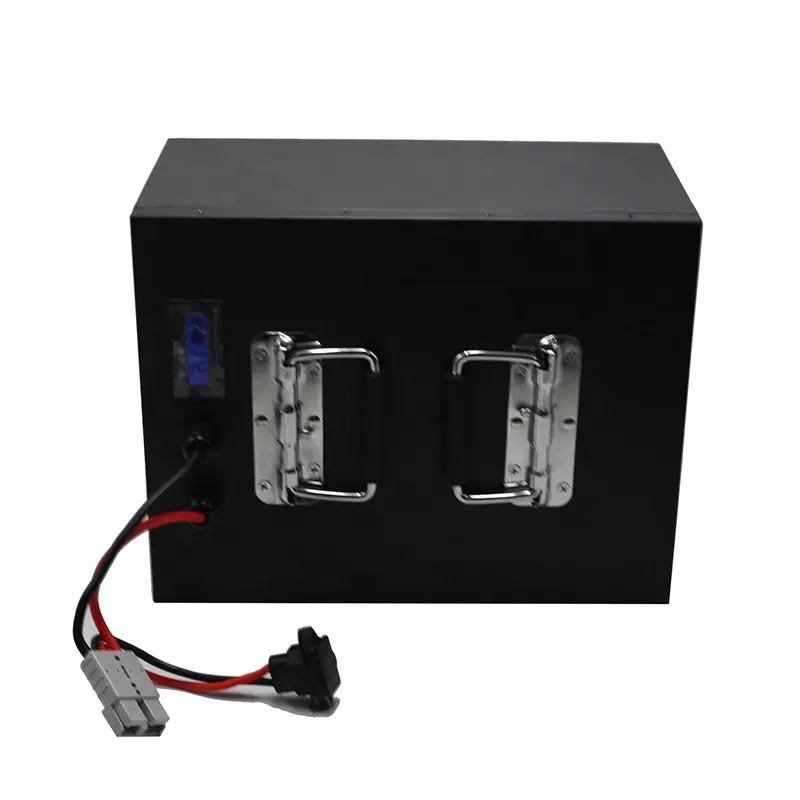

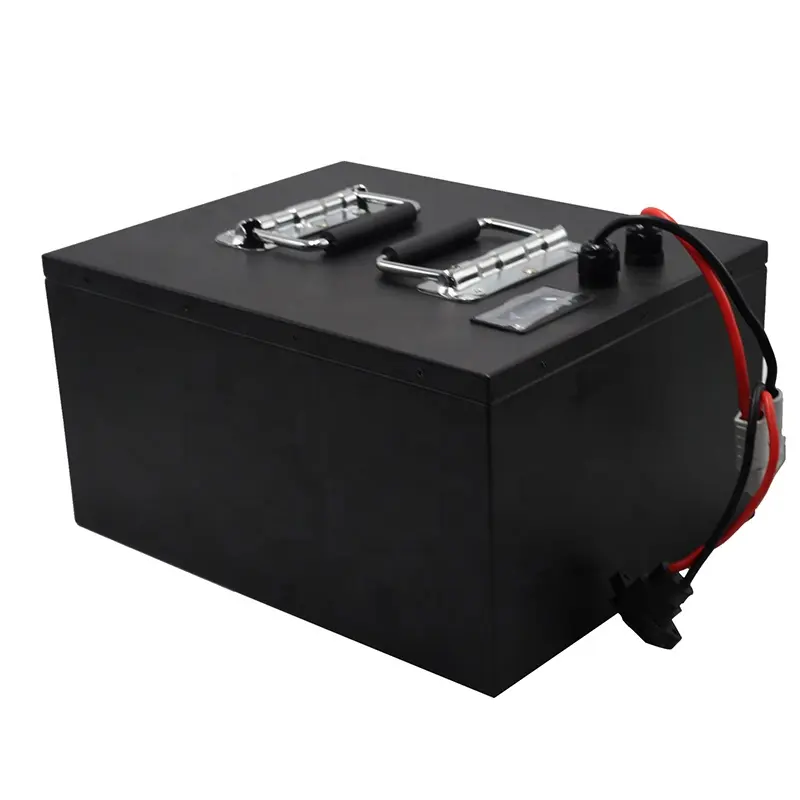

ईव्ही कारसाठी सानुकूलित LiFePO4 बॅटरी पॅक 72v 60ah इलेक्ट्रिक वाहन बॅटरी लिथियम आयन पॅक

2023-06-06 02:13

तपशील

ब्रँड नाव	सर्वसमाविष्ट
मॉडेल	AIN7260
हमी	5 वर्षे
नाममात्र व्होल्टेज	76.8V
नाममात्र क्षमता	[email protected]/customize
ऊर्जा	4416Wh
अंतर्गत प्रतिकार	Ω50mΩ
सायकल लाइफ	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
स्वत: ची डिस्चार्ज	25 at वर दरमहा .53.5%
मॅक्स.चार्जिंग व्होल्टेज	87.6 V
चार्जिंग मोड	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
चार्ज चालू	30 ए
मॅक्स.चार्जिंग करंट	60 ए
डिस्चार्जिंग करंट	30 ए
Max. discharge Continuous Current	60 ए
मॅक्स.पुल्स करंट	120A(<3S）
कट ऑफ व्होल्टेज सोडत आहे	60 व्ही
चार्ज तापमान	0 ℃ ते 45 ℃ (32 ℉ ते 113 ℉) @ 60 ± 25% सापेक्ष आर्द्रता
डिस्चार्ज तापमान	-20 ℃ ते 60 ℃ (-4 ℉ ते 140 ℉) @ 60 ± 25% सापेक्ष आर्द्रता
स्टोरेज तापमान	0 ℃ ते 45 ℃ (32 ℉ ते 113 ℉) @ 60 ± 25% सापेक्ष आर्द्रता
पाणी धूळ प्रतिकार	आयपी 55
सेल आणि स्वरूप	LFP  60AH 24S1P/customize
केसिंग	Metal Case
परिमाण (L * W * H * TH)	सानुकूलित करा
वजन	50kg
टर्मिनल	M6 or Anderson or another bolt screw
Peak discharge current BMS	60 ए
High temp port. Low temp port.	over charge port. over discharge port.
शुल्क पद्धत	सीसी / सीव्ही
Terminal Type	M6 or Anderson or another bolt screw/customize
प्रमाणपत्र	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

स्मरणपत्र

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

अर्ज

आमची फॅक्टरी

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

पॅकिंग आणि शिपिंग

पॅकिंग

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

शिपिंग

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



सामान्य प्रश्न

प्रश्नः मी पैसे कसे द्यावे? आपण कोणत्या देय द्यायचे स्वीकार करता?
A: T/T, PayPal, Western Union.

प्रश्नः नमुना ऑर्डर स्वीकार्य आहे काय?
उत्तर: होय, बर्‍याच बॅटरीसाठी, चाचणी गुणवत्तेसाठी नमुना ऑर्डर वाजवी आणि स्वीकार्य आहेत.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. झालेल्या नुकसानीसाठी, जसे बॅटरी बल्ज/वेल्डेड, बॅटरी पॅक संरक्षणाशिवाय बीएमएस चार्जिंगमुळे.
