BMS built-in long life LiFePO4 12V 100Ah Battery

2023-11-07 05:54

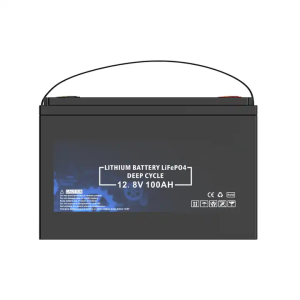

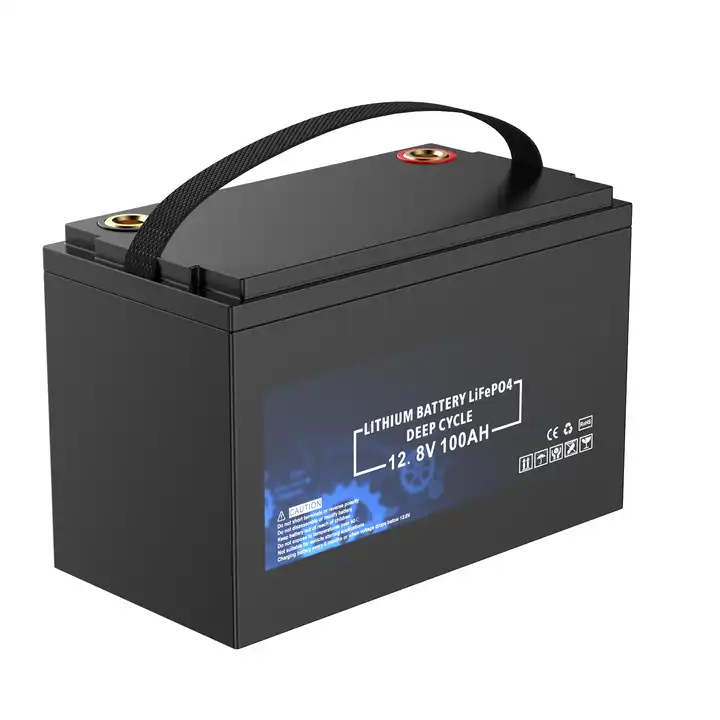

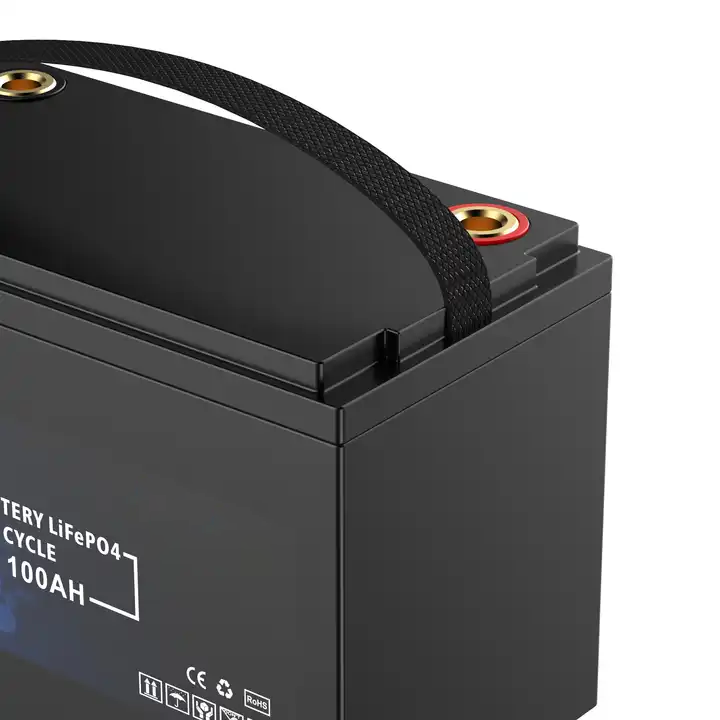

12V 100Ah LifePO4 Battery Pack With 100A BMS
Electricनाममात्र व्होल्टेज12.8 व्ही
 नाममात्र क्षमता100 एएच
 Stored energy1280wh
 सायकल आयुष्य6000 times (Cycle @RT, 1C rate,85%D\OD)
 कॉन्फिगरेशन4 एस 1 पी
 Self discharge< 3% per month


शुल्क पद्धतCC/CV : Constant Current / Constant Voltage
 End-of charge voltage14.6 व्ही
 सतत चार्ज चालू50 ए
 Maximum charge current70 ए


सतत स्त्राव चालू100 ए
 Maximum discharge current (< 3s)150A (3S)
 End-of discharge voltage9.2 व्ही


Charge temperature range0°C to +50°C
 Discharge temperature range-20 ℃ ~ 55 ℃
 स्टोरेज तापमान0°C- +50°C @60±25% relative humidity
यांत्रिकीCell assembly3.2v 100ah prismatic LifePO4
 Casing materialABS Case
 परिमाणसानुकूलित करा
 वजन12 किलो
 टर्मिनलएम 8



Battery Protection Management System

बीएमएस फंक्शन

Built-in 100A BMS

Automatic Functions
Low Voltage Disconnect
Short Circuit Protection
Over Voltage Protection
Over Current Protection
ओव्हर चार्ज प्रोटेक्शन
Over Discharge Protection
Over Temperature Protection
Internal Cell Balancing

हमी5 Years warranty, In use process, if the product quality problems will be free replacement parts.Our company will replace any defective item free of charge.
अर्जSolar Energy,Solar Street Light,Wind Energy,Household Energy,RV campers, Marine,Trolling Motor, Replace lead-acid batteries, LED light, Backup battery, Power battery.
OEM / ODMSticker/ Logo/ package / connector
प्रमाणपत्रCE, MSDS and UN38.3, etc

AIN12-100 LifePO4 battery pack use the grade A  LifePO4 battery, whose life span is 10 times longer than the traditional lead acid batteries, and it is lighter. For the capacity, Lifepo4 batteries can provide twice the battery capacity in the same amount of space. With operating ranges from -40 to 158 degrees Fahrenheit, LifePO4 handle far wider variations in temperature.


AIN-12 series battery pack can provide power for various equipment, such as the golf carts, RV, electric boat, street light and etc. With high capacity, which can meet all kinds of demands.

Lar सौर-पवन उर्जा प्रणाली
♦ Power tools: electric drills, toys Energy Storage
♦ City Grid (On/Off) Back-up solar System and UPS
♦ सुरक्षा आणि इलेक्ट्रॉनिक्स, मोबाइल पीओएस, खनन लिहगेट / टॉर्च / एलईडी लाइट / आपत्कालीन प्रकाश
El टेलकॉम बेस, सीएटीव्ही प्रणाली, संगणक सर्व्हर सेंटर, वैद्यकीय यंत्र, सैन्य उपकरणे इतर अनुप्रयोग
♦ Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel
chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.


आमची कंपनी

पॅकिंग आणि शिपिंग

वितरण वेळ
Normally delivery within 7-20days, but can arrange in advance if order confirm or produce faster according to quantity or other reason.
1. We accept T/T , PAYPAL , Western Union, Cash and so on

2. FOB , EXW and CIF all are available
3. Samples can accept Paypal.
Shipping way
DHL, UPS, FedEx, Special Line, Sea shipping, Customer own forwarder

सामान्य प्रश्न

Q1: Can I get free samples?

A1: Generally, we do not provide free samples, but we can refund the sample cost when buyers place bulk orders.

Q2: If we place an order, how long is the delivery time?

A2: It depends on the order quantity. Usually, for small orders, we can deliver within 3-5 working days. For bulk orders, let us confirm when we place the official order.

Q3: What are your payment and delivery terms?

A3: Payment terms: via T/T, 30% deposit and balance all before shipment. For small amounts, we also accept payment via PayPal.

Q4: Which company will be used for shipment, DHL, UPS or others?

A4: Usually, we ship batteries via DHL, UPS and FedEx.

Q5: What kind of packages do you ship? Can I have a customized package?

A5:We have factory current standard package, custom printed logo should meet the buyer's requirement, extra cost will be borne by the buyer, for more details, please contact us.

Q6: Your factory or trading company?

A6: We are a professional battery manufacturer with our own factory and brand. We provide various OEM / ODM services to our customers all over the world.

Q7: Where is your company's main market?

A7: Our company focuses on North America, Europe, Korea and Japan market for high quality batteries.

Q8: What are your advantages compared to other suppliers?

A8 a) High quality batteries: Our batteries have sufficient capacity and low RI. Before shipping, we will check the products and make sure the quality is approved by customers.

A8 b) Better service: We always provide what our customers need. Promptly respond to customer's questions. We provide the best project solution for our customers. We ship on time.

Q9: ऑर्डर देण्यापूर्वी आम्ही आपल्या कारखान्यास भेट देऊ शकतो?

A9: Of course no problem, we are always welcome to visit our factory.

टीपः आम्ही बॅटरी उत्पादक आहोत. सर्व उत्पादने किरकोळ समर्थन देत नाहीत, आम्ही फक्त B2B व्यवसाय करतो कृपया उत्पादनाच्या किंमतींसाठी आमच्याशी संपर्क साधा!
